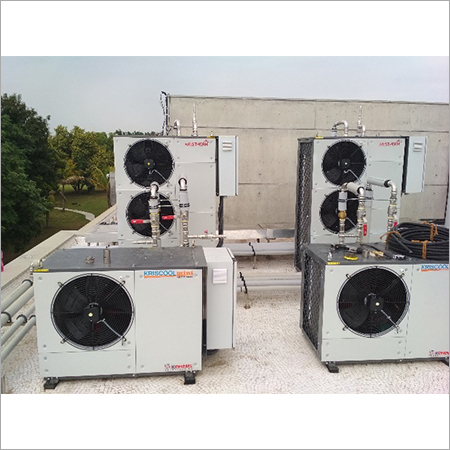

A2W Heat Pumps

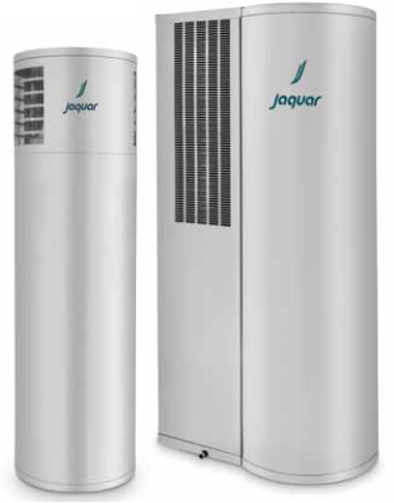

Jaquar Integra Heat Pump Water Heater

S.No

Model

HPM-WHT-200

HPM-WHT-300

HPS-WHT-300

HPS-WHT-400

HPS-WHT-500

1

Model Configuration

Monobloc

Monobloc

Split

Split

Split

2

Rated Heating Capacity

2.2 kW

4.0 kW

5.2 kW

5.2 kW

7.2 kW

3

Rated Input Power

0.55 kW

0.99 kW

1.30 kW

1.30 kW

1.8 kW

4

COP

4.0

4.0

4.0

4.0

4.0

5

Rated Hot Water Production

2.3 A

4.5 A

112 L/h

112 L/h

155 L/h

6

Working Ambient Temperature

-7¯½43 ^oC

7

Max Outlet Temperature

55/75 ^oC

8

Required Power Supply

220V/1Ph/50Hz

9

Operating Voltage Range

200V ~ 240V

10

Sound Level

<46 dB

<48 dB

<48 dB

<48 dB

<50 dB

11

Tank Volume

200 L

300 L

300 L

400 L

500 L

12

Compressor

Panasonic

Panasonic

Panasonic

Panasonic

Panasonic

13

Compressor Capacity

1HP

1.5HP

1.5HP

1.5HP

2HP

14

Heating Element

2.0 kW

2.0 kW

2.0 kW

4.0 kW

4.0 kW

15

Refrigerant Type

R134a

R134a

R410a

R410a

R410a

16

Outer Body Material

Stainless Steel

Stainless Steel

Prepainted Steel

Prepainted Steel

Prepainted Steel

17

Inner Tank Material

Glass Lined MS Tank

18

Max Water Pressure

0.8 Mpa

19

Defrosting

Auto

20

Water Proof Grade

IPX4

21

Insulation Thickness

PUF - 50mm

22

Remote Control

Wired Digital Remote Control

23

Warranty

Tank

4 Year

Compressor

2 Year

Heating Element

2 Year

Other Components

1 Year

24

Net Weight

Unit

100 kg

150 kg

48 kg

48 kg

54 kg

Tank

84 kg

105 kg

128 kg

25

Gross Weight

Unit

130 kg

180 kg

65 kg

65 kg

68 kg

Tank

104 kg

125 kg

148 kg

26

Net Dimension

Unit

¦560x1980 mm

560x850x1800 mm

970x390x780 mm

970x390x780 mm

970x390x780 mm

Tank

¤650x1427 mm

¤700x1480 mm

¤700x1850 mm

27

Gross Dimension

Unit

635x647x2006 mm

640x932x1950 mm

1045x500x925 mm

1045x500x925 mm

1045x500x925 mm

Tank

700x700x1500 mm

740x740x1575 mm

740x740x1925 mm
